Excavator Earth Auger

PANDA earth auger is a kind of hole drilling machine which can be used for fence, landscaping, tree planting, well drilling, screw pile installation, geothermy pumping source , stem and mast installation, guideboard , sound barrier screen plate , detection and research .

  • Excavator Earth Auger
  • Excavator Earth Auger
  • Excavator Earth Auger
  • Description

  • Service&Warrantly

  • FAQ

Excavator Earth Auger

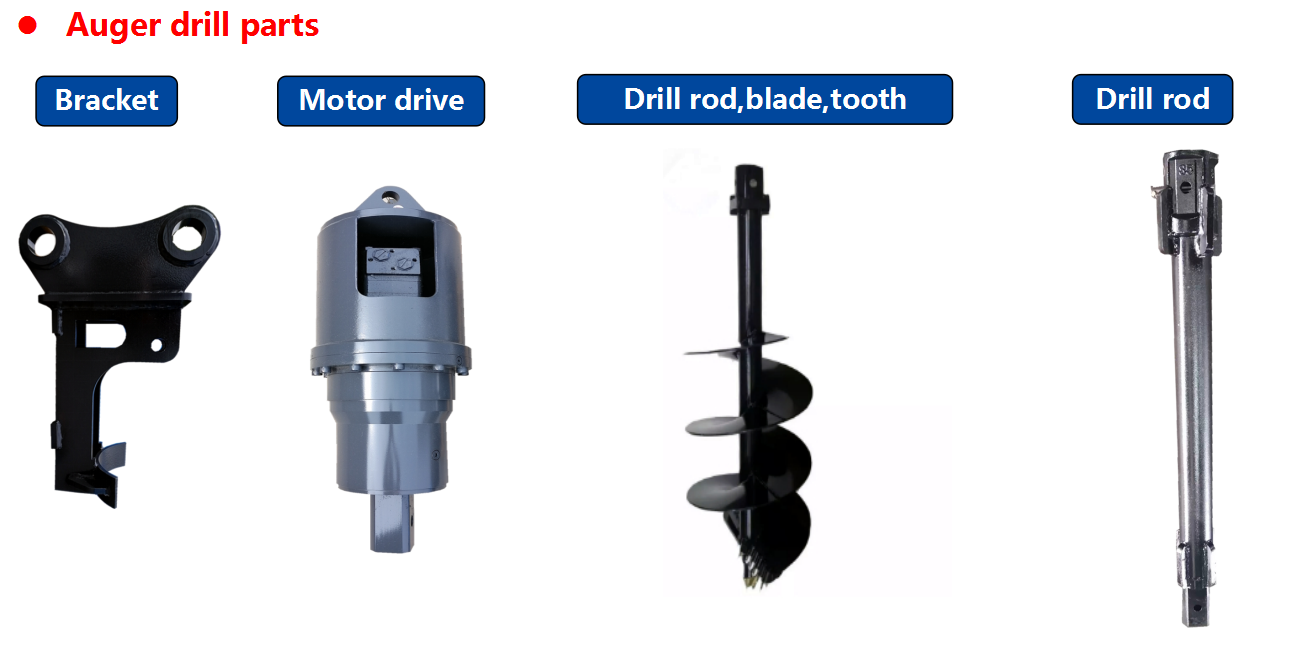

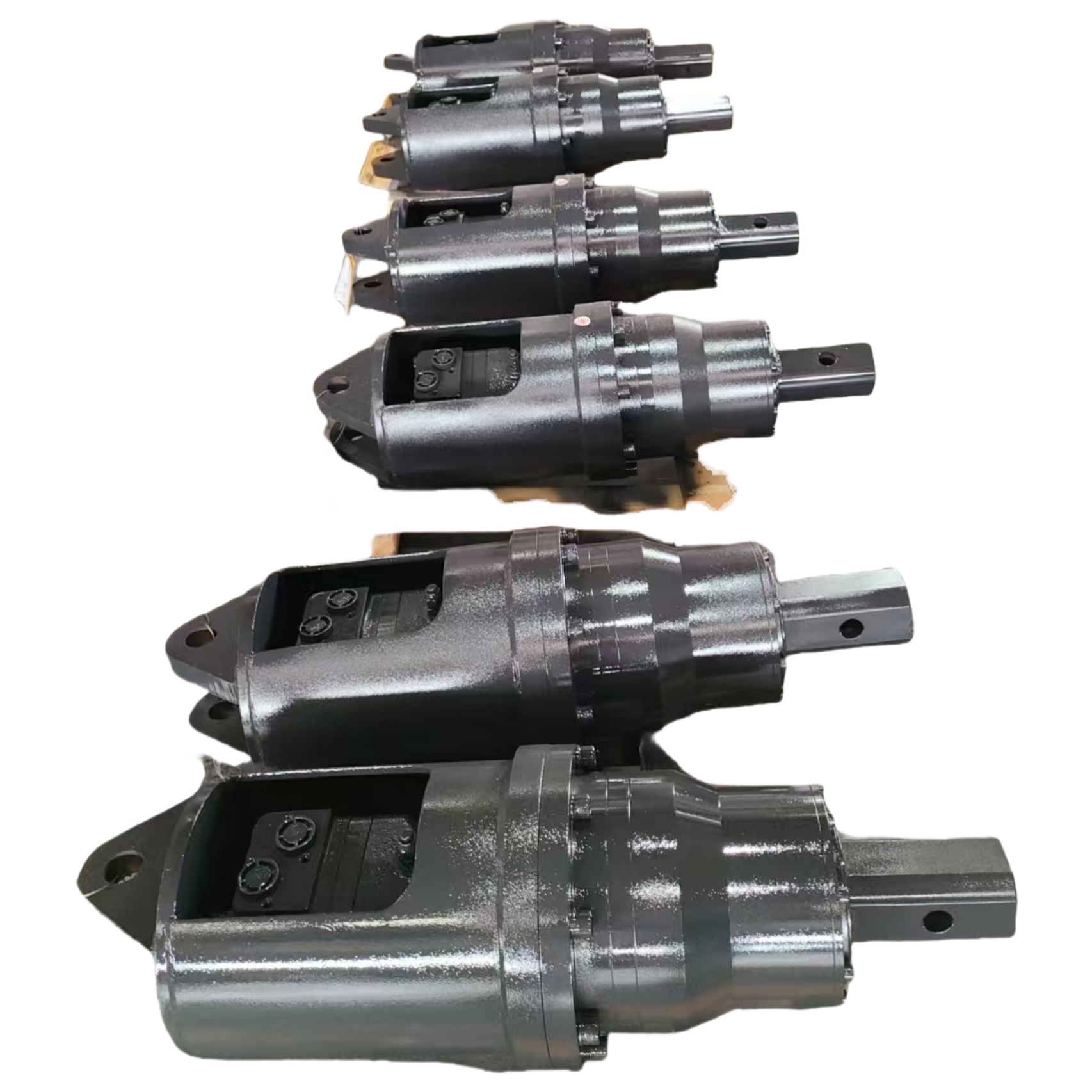

Auger drilling machine is a kind of hole drilling auger machine, including double pin hitch, power head (including motor, gear box, input shaft, output shaft), auger drilling rod and bit. Pin hitch is equipped with slide way and reduction gearbox which can slide along the slide way. The reduction gearbox is connected with input shaft and output shaft. The input shaft is connected with hydraulic motor, and the output shaft is connected with drilling rod which is connected with drill bit.
Our Earth Auger are over engineered and built to last, giving you the same versatility, peace of mind and product quality you’d expect from all our products. Developed to work with all makes and models of parent machine, and complemented with a range of attachments, you will find an earth auger and attachment for your every need.
With the versatility to easily switch between attachments depending on the job at hand, you can be sure that your PANDA Earth Auger will deliver, time and again.


Model Unit PA30Z  PA60Z  PA80Z PA150Z PA200Z
Torque Nm 3500-4000 5000-6300 7200-10000 12000-15000 17000-20000
Pressure Bar 80-140 80-180 80-180 80-260 180-260
Oil flow Lpm 70-120 70-150 70-150 80-170 80-170
Rotate speed Rpm 20-50 20-50 20-40 20-35 15-30
output shaft mm 75Sq 75Sq 75Sq 75Sq 95Sq
Pore-forming range mm 200-400 200-600 200-800 200-1000 200-1200
Suitable excavator Ton 2-3 5-8 12-18 18-24 25-36

Product features:
1.The auger drilling machine can improve the efficiency highly;
2.The reduction gearbox slides along the pin hitch and can guarantee the drill machine verticality;

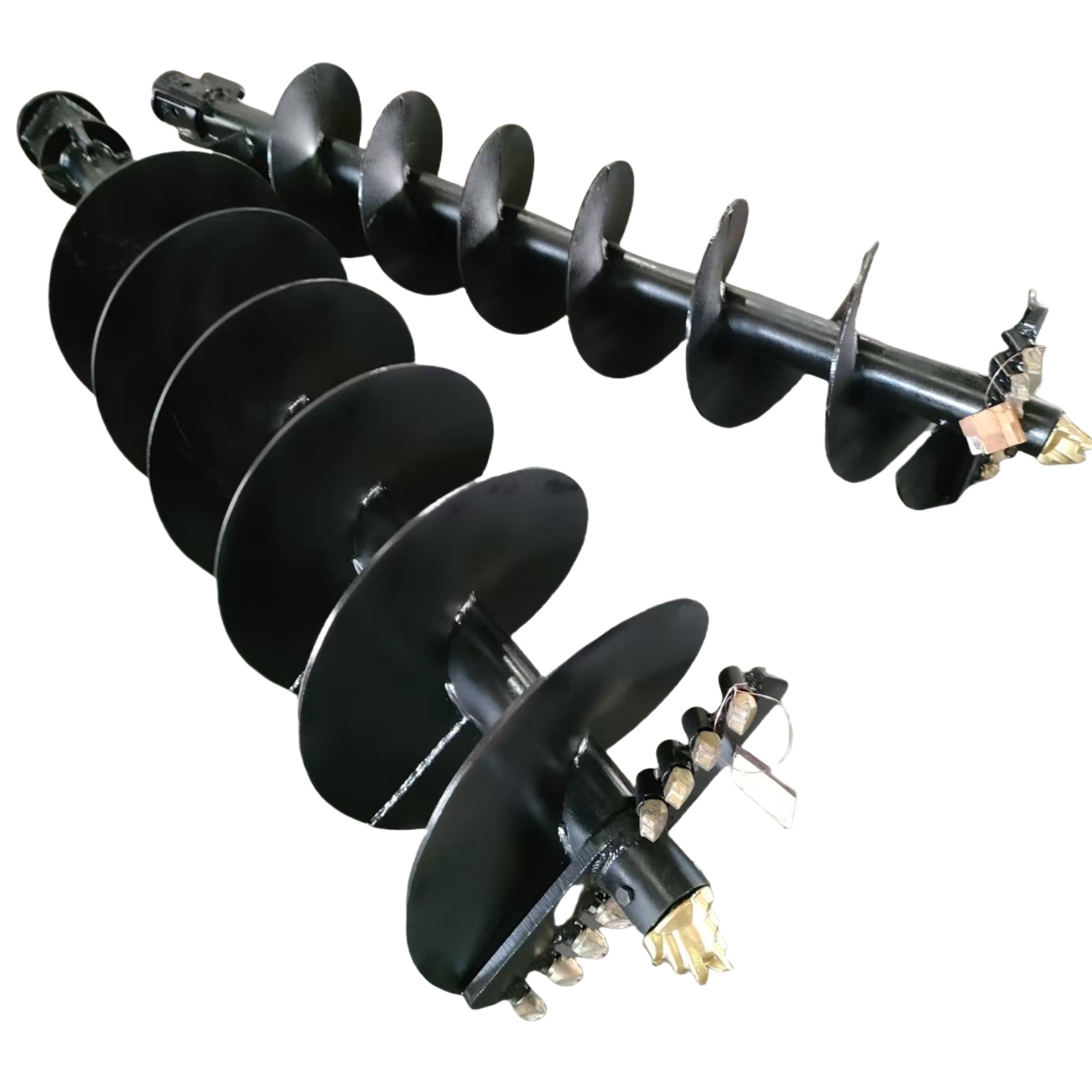

3.The drill rod is auger rod and when it drills into the earth, the earth material can be returned to the ground;
4.The output shaft is hollow shaft, and the above can be connected with the cement injection to inject cement.


1. One-stop service, producing all kinds of hydraulic hammers and excavator accessories, such as quick hooks, grabs, compactors, augers, rippers, etc...

2. Provide free customized services. We have a professional design team to meet any of your requirements. At the same time, we can provide intimate pre-sales and after-sales services.

3. Sign a confidentiality agreement regarding product information.

4. The product will be tested before leaving the factory.

5. Fast delivery service

6.We provide free replacement and maintenance services within one year.




1. What's the material used for attachment (bucket etc.) parts?

* For mini attachments under 6Tone, we make them from Q235 and Q345B.

* For General purpose attachments from 6Tone to 20Tone, we make them from Q235 and partly NM400 (Chinese HB400)

* For Heavy duty and hi capacity attachments, we make them from Q345B and partly HARDOX400.


2. Can you develop parts by drawings or samples?

* Yes, of course. Also we have the knowledge to design new attachments from concepts.

3. What’s the payment and delivery time?

* Normally, the payment should be TT and 30% paid in advance; 70% balance before delivery.

* 20- 25 working days are ready to ship.

4. Can I trust you?

* Please do not doubt that.

* We are selling parts to OE makers and distributors worldwide for more than 25 years.

* Average 5 container buckets are sent per week.

5. Do you have the inspection procedures?

*100% strict Inspection and testing for every order before packing.

6. How can I choose the most suitable model?

* Please tell me your machine model,detailed applications,then we can make suggestions for you.

7. Are you a manufacturer?

* Yes,our factory was established in 2000 year in Yantai, Shandong. and we have ability to trading.
