Hydraulic plate compactor is a kind of excavator attachments used to compress some types of soil and gravel usually used for construction projects that require a stable subsurface, and it is widely used in highway or railway roadbed engineering, industrial and civil construction, environmental and so on. PANDA hydraulic plate compactor has five models for the excavators from 1.5-30ton.
Hydraulic Compactor belongs to the equipment used for excavators, which is used for tamping the ground. It can tamp the plane, slope, step, groove, pit, corner, abutment back, etc. It is widely used in the tamping industry and is often used with vibratory roller.
PANDA hydraulic compactors are the most outstanding compactor. It is designed to mount on other equipment. It is like auxiliary equipment and can be mounted on excavators and backhoe machinery. It compact every type of material even compact material in places where other machines fail to compact. The hydraulic Compactors are good for trench compaction, foundation compaction and on banks and slopes of different kinds. They can be used to compact a variety of materials. Keep your crew safe and out of trenches whilst compacting backfill layers.
| Item | PA30H | PA60H | PA150H | PA200H | PA300H |
| Powder of impulse（ton） | 4 | 4 | 6.5 | 15 | 15 |
| Max vibratory frequency(r/min) | 2000 | 2000 | 2000 | 2000 | 2000 |
| Oil flow(L/min) | 45-75 | 45-75 | 85-105 | 120-170 | 120-170 |
| Pressure(kg/c㎡) | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
| Weight(kg) | 200 | 300 | 500 | 900 | 950 |
| Bottom measurement(L*W mm) | 675*450 | 900*530 | 1030*670 | 1350*870 | 1350*870 |
| Total Height(mm) | 670 | 700 | 860 | 1000 | 1050 |
| Total width(mm) | 790 | 530 | 670 | 870 | 870 |
| Suitable excavator(ton) | 2-3 | 5-8 | 12-18 | 18-24 | 25-36 |
Product features:
1. Using special steel,it has the advantages of high toughness and high wear-resistance
2. Reasonable appearance mechanical structure,imported hydraulic motor,strong and durable
3. Original imported America"PERMCO"motor,long-lasting endurance and greater impact
4. Imported cylindrical roller bearing,low noise,high speed and reliable

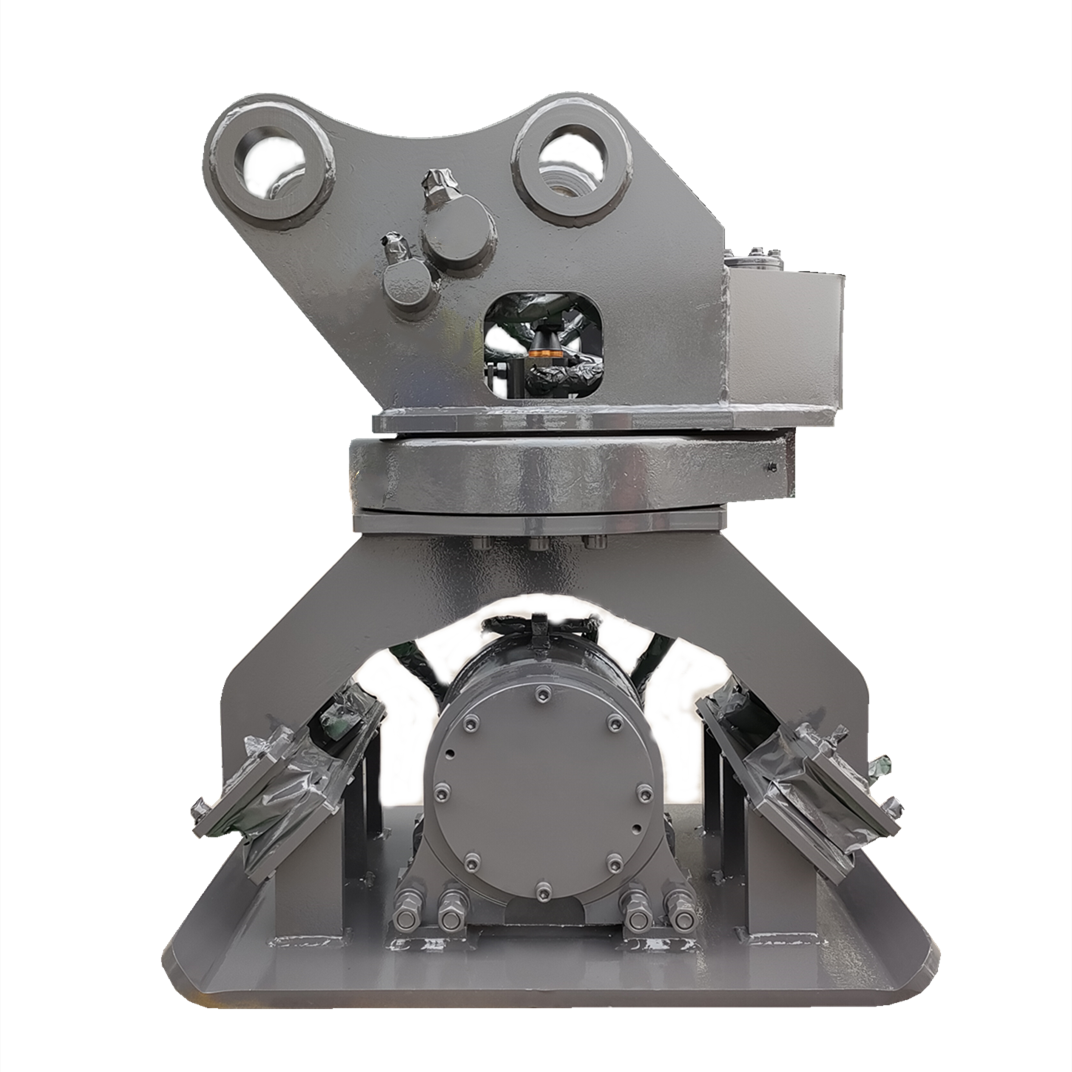

5. The product can also be made of rotary type and split type,and customers can choose and customize in a variety of ways
6. Mainly suitable for infrastructure construction and maintenance departments such as roads,railways,ports,construction,water conservancy,and municipal administration.In terms of urban construction,it is mainly used for the compaction of auxiliary facilities such as dry building trenches,foundations,and pipelines.
7. Are you a manufacturer?
* Yes,our factory was established in 2000 year in Yantai, Shandong. and we have ability to trading.
