Hydraulic Eagle Shear

You can use PANDA hydraulic demolition eagle shear to do the demolition work such as crushing and separation of reinforced concrete, dismantling scrapped vehicles, cutting iron beams of building structure and so on.We have a full range of shear for excavators from 15-55 ton.They are suitable for all kinds of brands and models of excavators.
  • Hydraulic Eagle Shear
  • Hydraulic Eagle Shear
  • Hydraulic Eagle Shear
  • Hydraulic Eagle Shear
  • Hydraulic Eagle Shear
  • Hydraulic Eagle Shear
  • Description

  • Service&Warrantly

  • FAQ

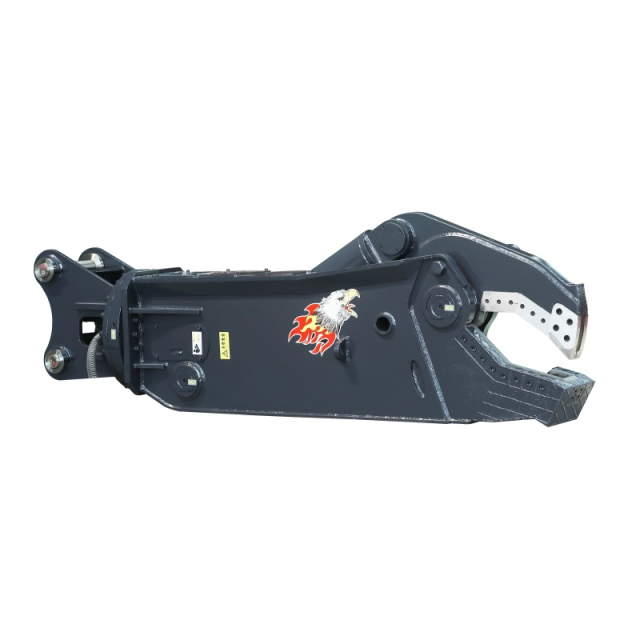

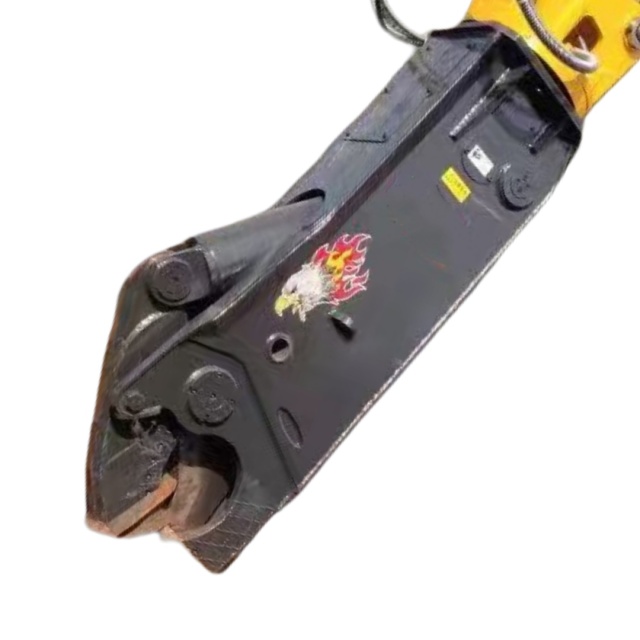

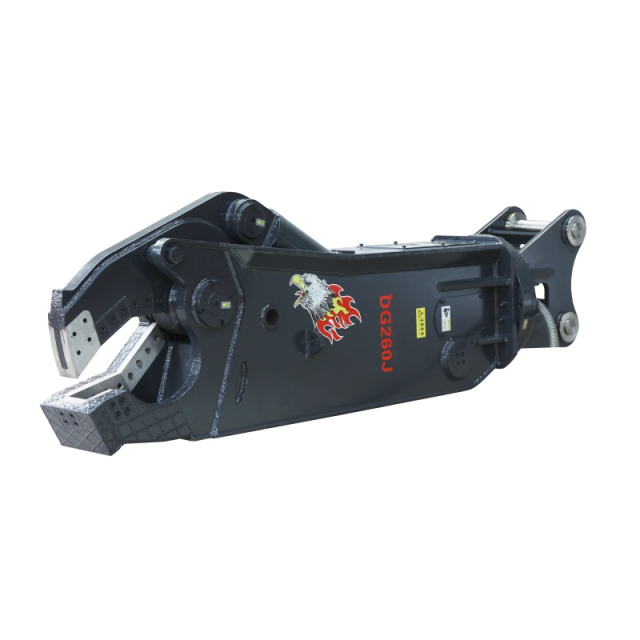

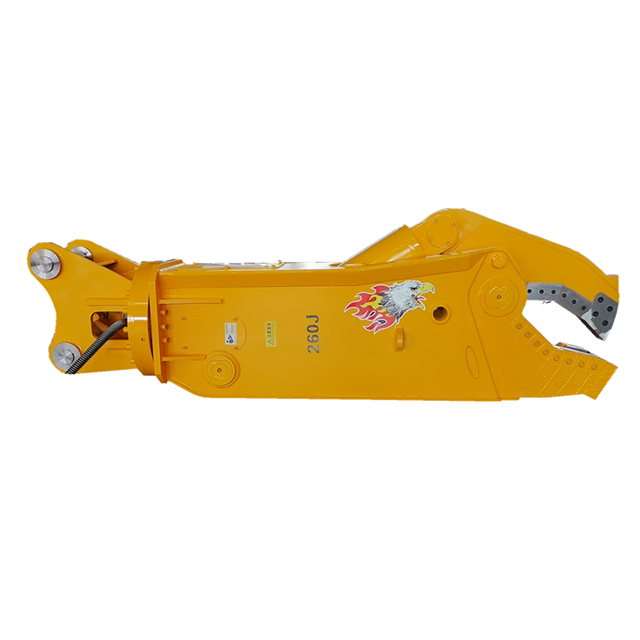

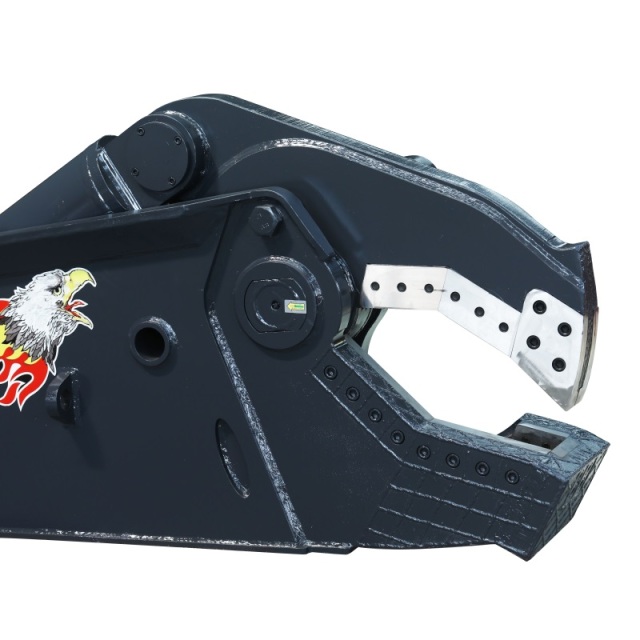

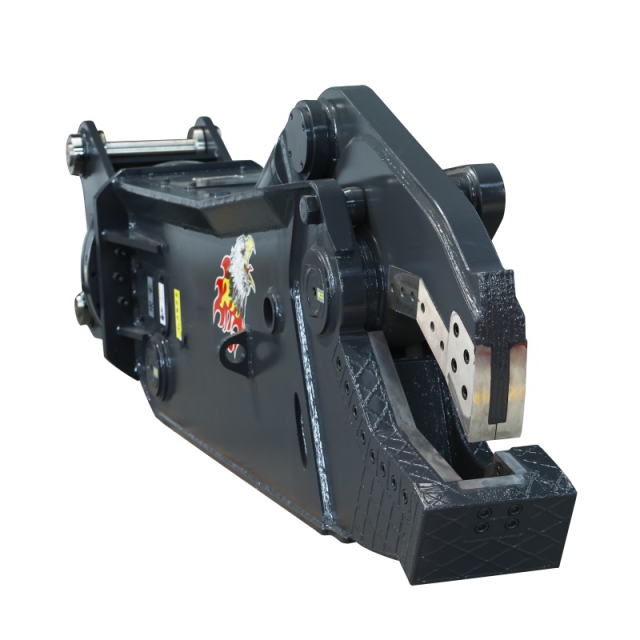

Hydraulic Eagle Shear

Unleash extreme cutting power on any steel scrap with our Hydraulic Eagle Shear. Engineered with dual cylinders for maximum force and a speed valve for rapid cycles, it transforms your excavator into a highly efficient, profit-generating steel processing machine.

Excavator multi functional hydraulic cutter is the ideal tool in the rescue process.Double oil cylinder body is equipped with a variety of different structure of jaw,realizing the separation, shearing removing in the rescue process,making the rescue higher working efficiency.Double oil cylinder is with large opening design,so the work is easy,convenient ,flexible operation,and ensure powerful motivation of equipment.Work efficiency is two to three times of broken hammer,fully mechanized,safe and saving time.

Model PA260JY-2 PA360JY-2 PA460JY
Extemal diamensions(mm) 3165-1080 3400-1190 3780-1380
Max opening 530 605 700
The depth of the shear 535 585 700
Rotary flow 50-70 50-70 50-70
Rotary pressure 80-100 120-160 140-160
Tension flow 160-250 160-250 200-250
Tension pressure 280-320 280-320 280-320
Weight 2500 3300 4500
Head shear force 100 160 190
Middle shear force 190 260 380
End shear force 650 850 950
Suitable excavator 20-32 28-40 36-48



Product features:

1.Versatility: the power comes from various brands and models of excavators, which truly realize the versatility and economy of the products;
2.Safety: construction workers do not touch construction and adapt to complex terrain safety construction requirements;
3.Environmental protection: fully hydraulic drive achieves low noise operation, does not affect the surrounding environment during construction, and meets domestic mute standards;
4.Low cost: simple and convenient operation, less staffing, lower construction costs such as labor costs and machine maintenance;
5.Long life: reliable quality, the staff strictly follows the instructions for use and has a longer service life.

1. One-stop service, producing all kinds of hydraulic hammers and excavator accessories, such as quick hooks, grabs, compactors, augers, rippers, etc...

2. Provide free customized services. We have a professional design team to meet any of your requirements. At the same time, we can provide intimate pre-sales and after-sales services.

3. Sign a confidentiality agreement regarding product information.

4. The product will be tested before leaving the factory.

5. Fast delivery service

6.We provide free replacement and maintenance services within one year.




1. What's the material used for attachment (bucket etc.) parts?

* For mini attachments under 6Tone, we make them from Q235 and Q345B.

* For General purpose attachments from 6Tone to 20Tone, we make them from Q235 and partly NM400 (Chinese HB400)

* For Heavy duty and hi capacity attachments, we make them from Q345B and partly HARDOX400.


2. Can you develop parts by drawings or samples?

* Yes, of course. Also we have the knowledge to design new attachments from concepts.

3. What’s the payment and delivery time?

* Normally, the payment should be TT and 30% paid in advance; 70% balance before delivery.

* 20- 25 working days are ready to ship.

4. Can I trust you?

* Please do not doubt that.

* We are selling parts to OE makers and distributors worldwide for more than 25 years.

* Average 5 container buckets are sent per week.

5. Do you have the inspection procedures?

*100% strict Inspection and testing for every order before packing.

6. How can I choose the most suitable model?

* Please tell me your machine model,detailed applications,then we can make suggestions for you.

7. Are you a manufacturer?

* Yes,our factory was established in 2000 year in Yantai, Shandong. and we have ability to trading.
