The prefect design of the bucket is helpful efficient digging, filling and bucket breakout force, making our buckets are widely welcomed by contractors while guaranteeing quality and longevity.Manufactured to any width and bucket capacity as required by customer.High quality materials, ex Q345B, NM360/400, HARDOX450/500.OEM Standard Buckets.Strong and durable construction to withstand robust working conditions.

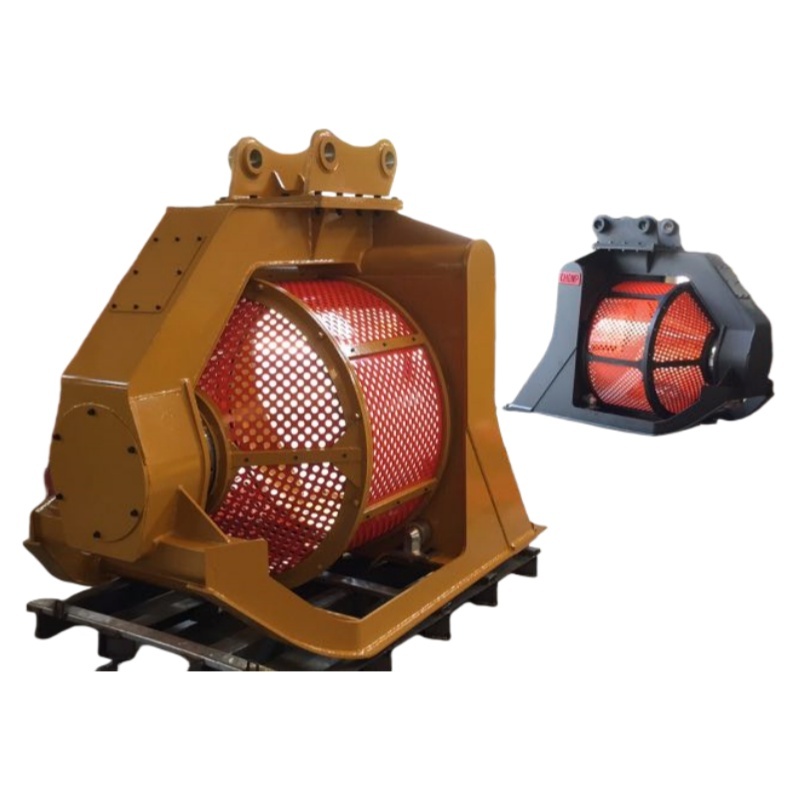

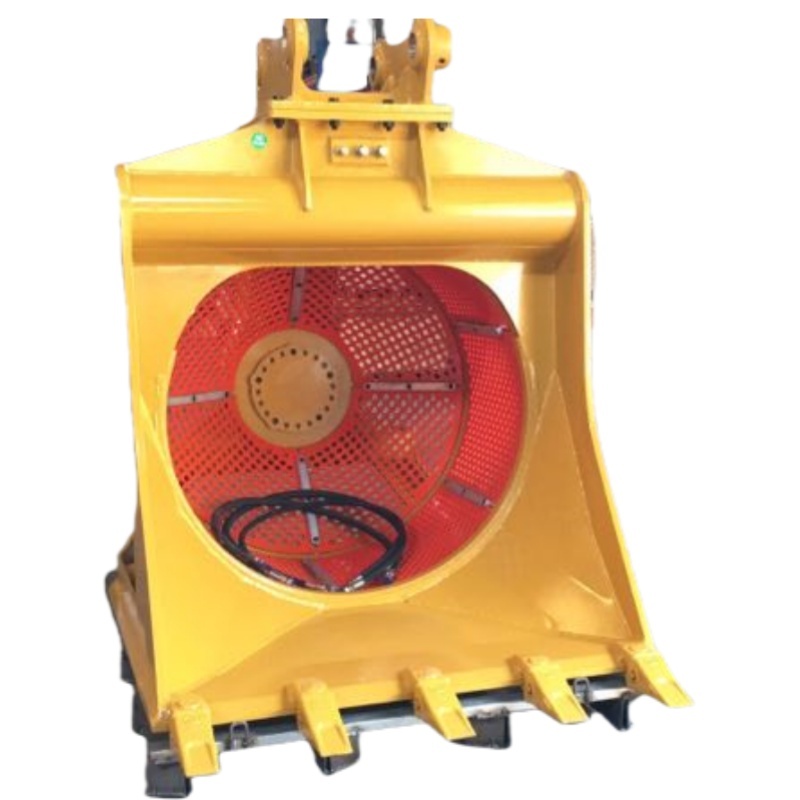

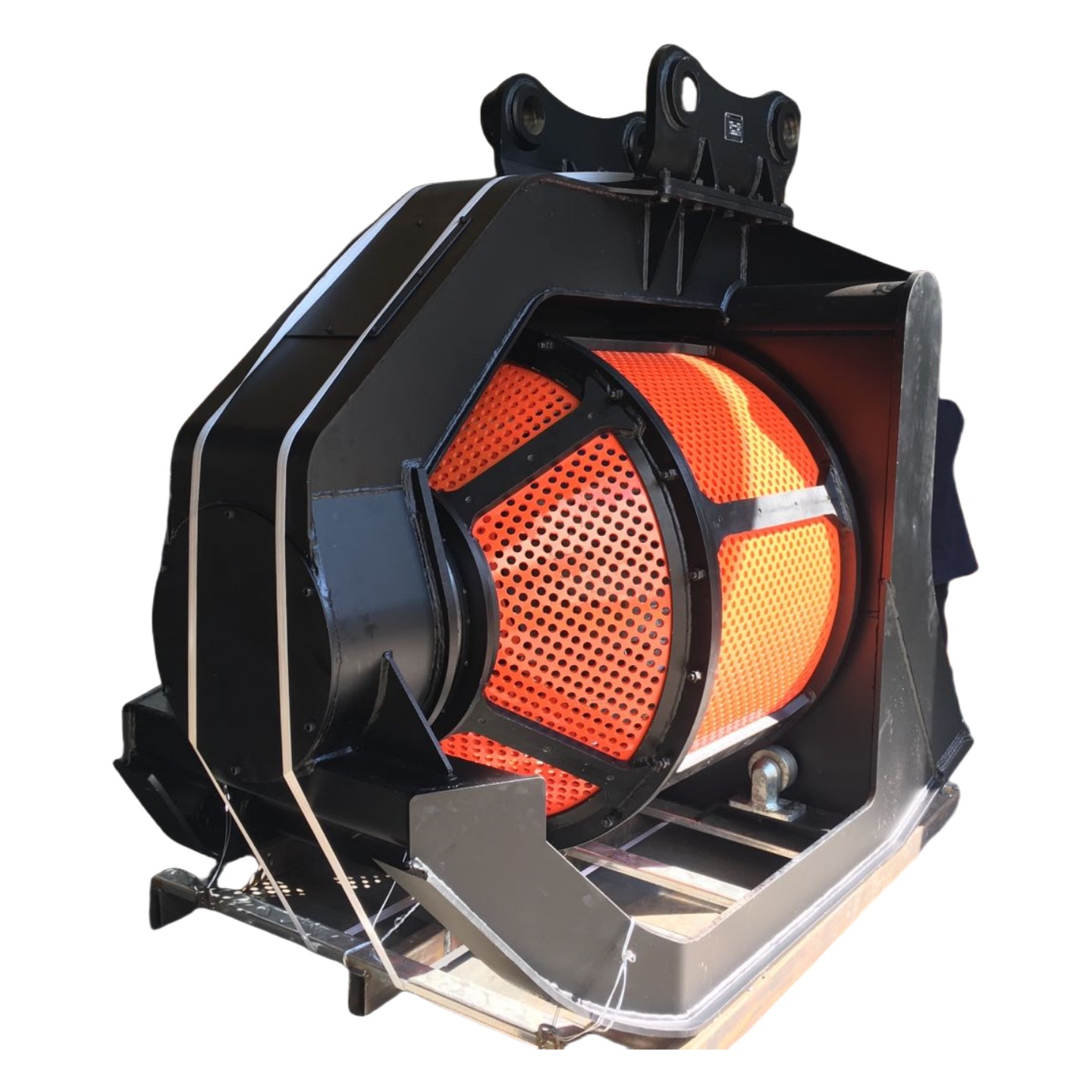

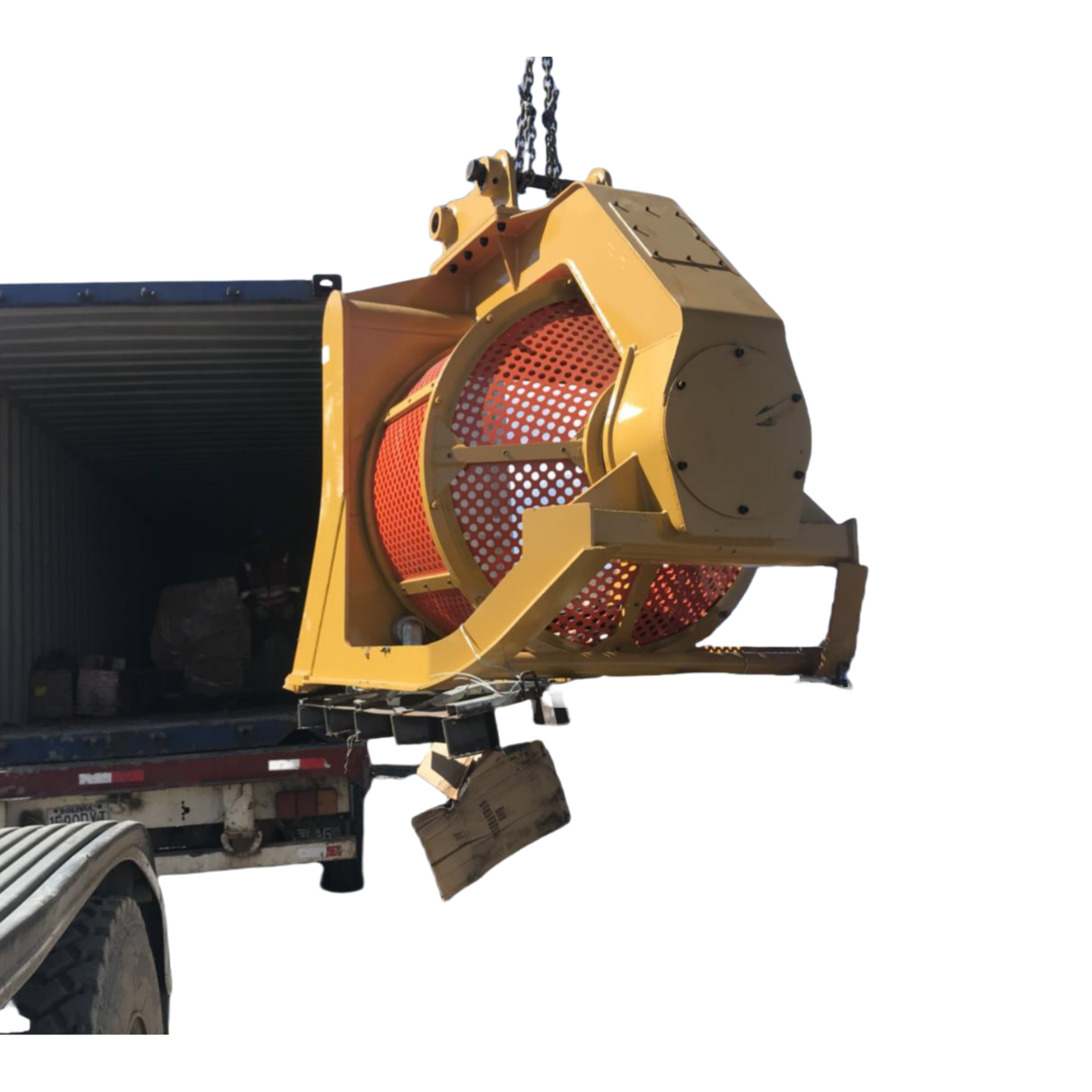

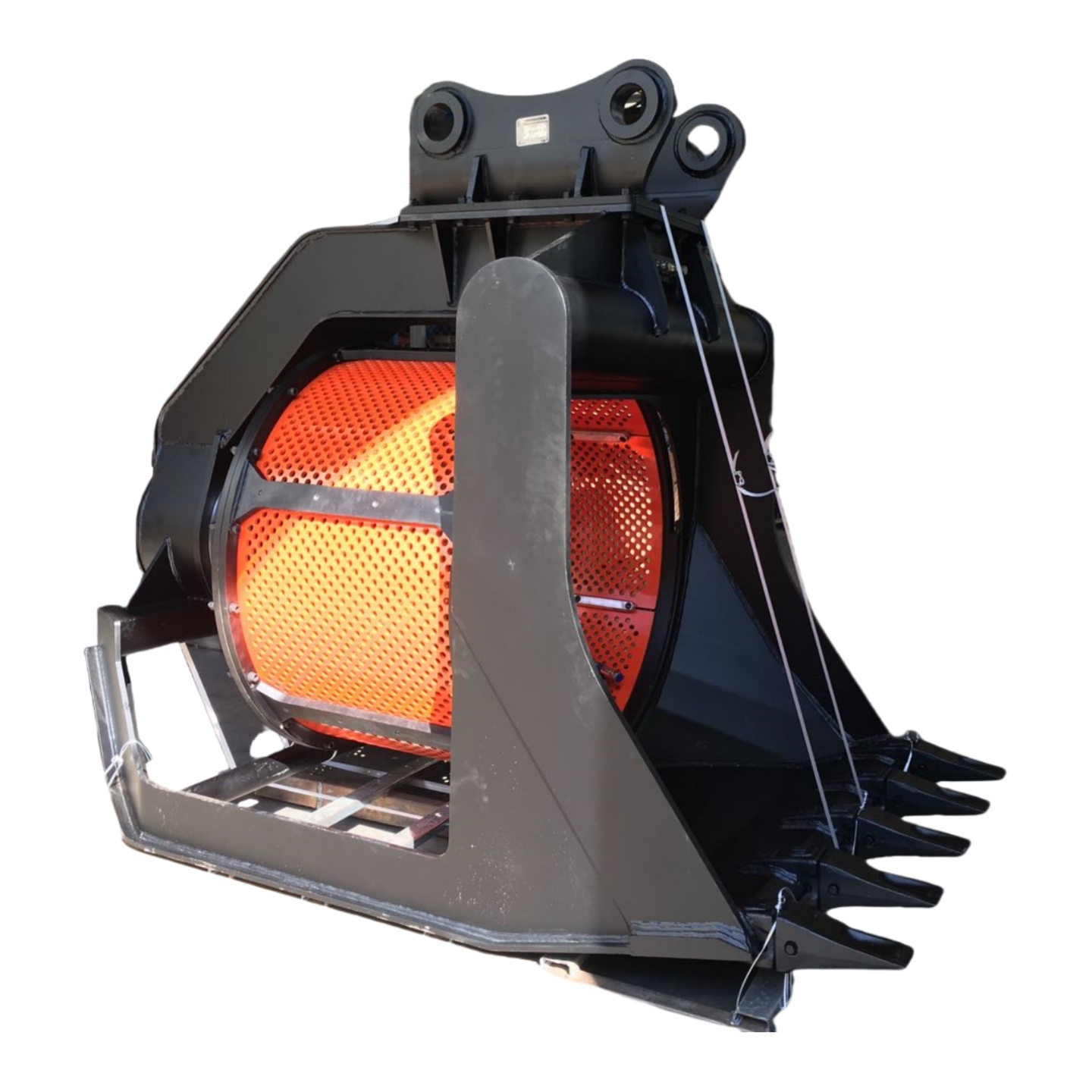

Rotary Screening Bucket or called Rotary Sieving Bucket is ideal for waste material selection on demolition sites, aggregate recovery on construction and building renovation sites, organic waste separation in landfill sites, filing containment cages, covering pipes in pipeline works, and much more.4-piece changeable screening mesh, available in a variety of size (20 -200mm),makes replacement quick and easy; Drum protection - reducing wearing from the elements;Bolt on wear edges making replacement simple, improving efficiency; Easy access for inspections; Frame protection for hydraulic components.The bucket sizes and can be customized to fit the user's specific working condition.
| Model | PA02 | PA04 | PA06 | PA08 | PA10 |
| Suitable excavator(Ton) | 2-4 | 6-10 | 12-17 | 18-23 | 25-36 |
| Rotary Screen diameter(Mm) | 610 | 810 | 1000 | 1350 | 1500 |
| Rotating Speed（R/Min） | 60 | 65 | 65 | 65 | 65 |
| Working Pressure(Bar) | 30 | 60 | 80 | 110 | 110 |
| Oil Flow (L/min) | 30 | 60 | 80 | 110 | 110 |
| Weight (Kg) | 175 | 630 | 1020 | 1920 | 2430 |
1）Reinforced Cutting Edge:
The cutting edge is reinforced for enhanced durability and improved penetration, making it well-suited for breaking and handling hard rock.
2）Optimized Bucket Shape:
The bucket's design is optimized to maximize material retention and facilitate efficient loading, ensuring effective rock handling with each scoop.
3）Wear-Resistant Design:
Incorporating wear-resistant components, the rock bucket minimizes wear and tear during continuous rock-handling operations, contributing to extended service life.
4）Quick Attachment and Operation:
Designed for quick and secure attachment to excavators, the rock bucket allows for efficient task-switching and streamlined workflow.
5）Compatibility with Excavator Models:
Engineered to be compatible with a range of excavator models, the rock bucket offers adaptability and ease of integration into existing equipment fleets.
6）Enhanced Tooth System:
Equipped with an enhanced tooth system, the bucket ensures effective penetration and breaking of rocks, optimizing overall rock-handling efficiency.
7. Are you a manufacturer?
* Yes,our factory was established in 2000 year in Yantai, Shandong. and we have ability to trading.
