The prefect design of the bucket is helpful efficient digging, filling and bucket breakout force, making our buckets are widely welcomed by contractors while guaranteeing quality and longevity.Manufactured to any width and bucket capacity as required by customer.High quality materials, ex Q345B, NM360/400, HARDOX450/500.OEM Standard Buckets.Strong and durable construction to withstand robust working conditions.

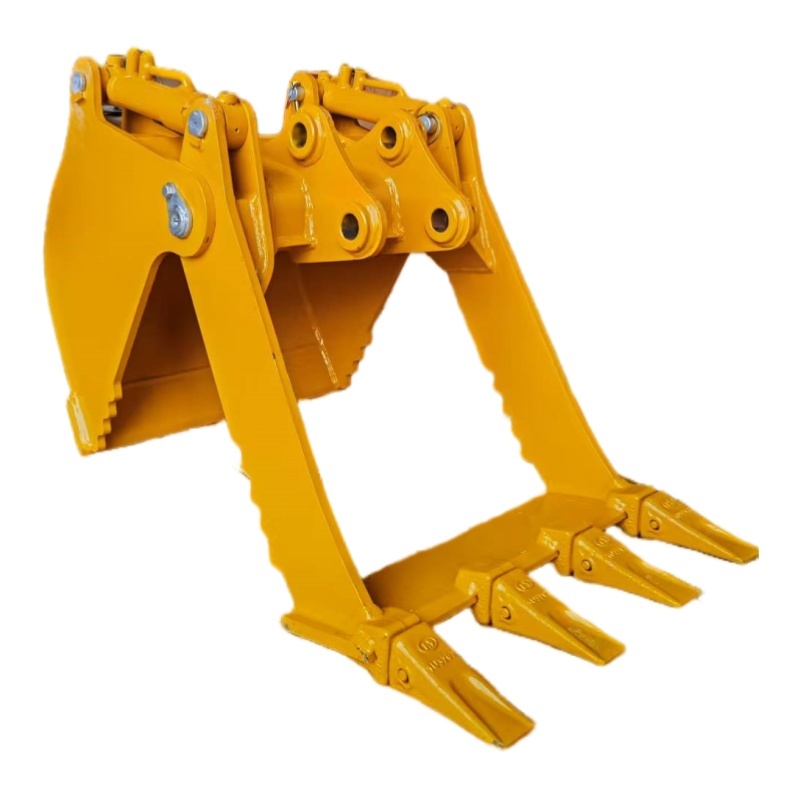

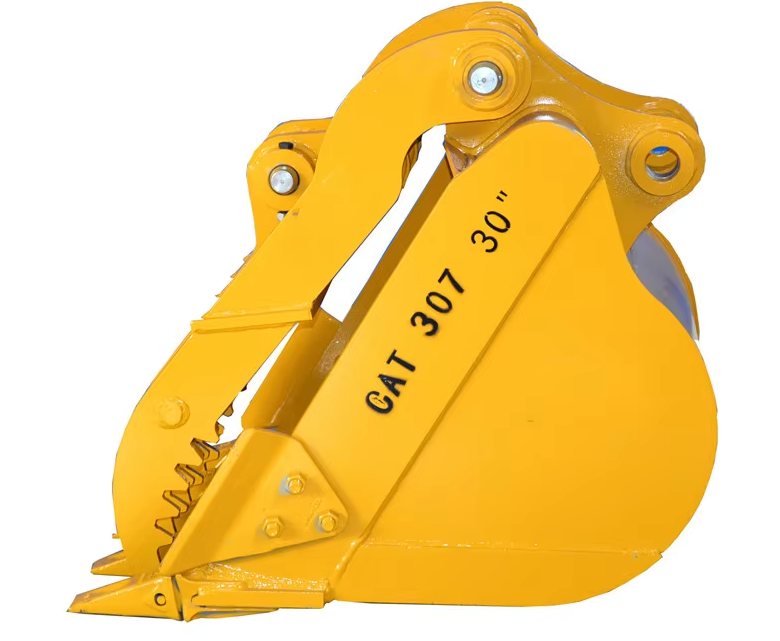

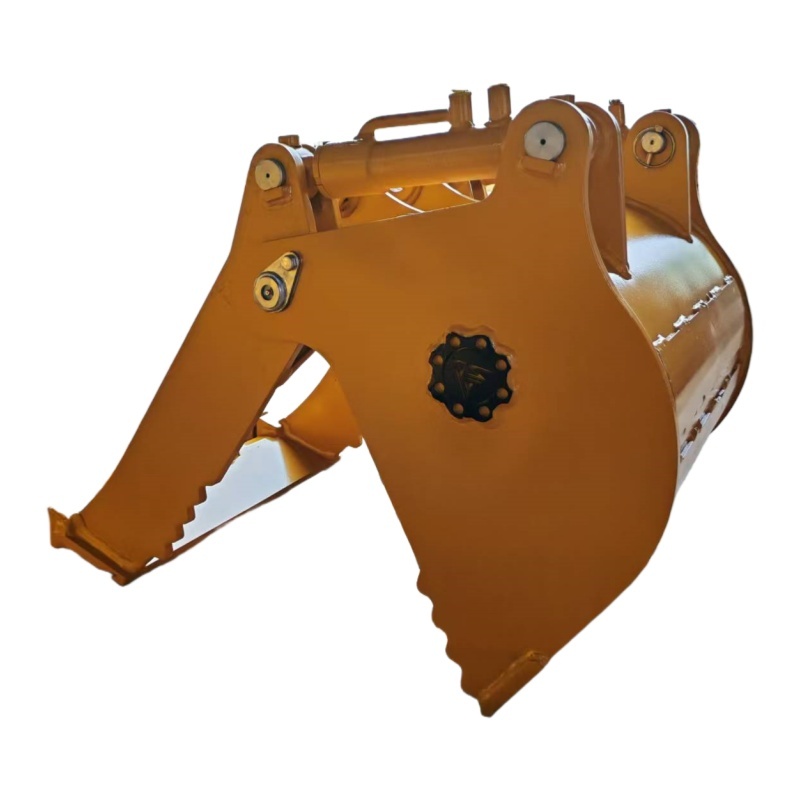

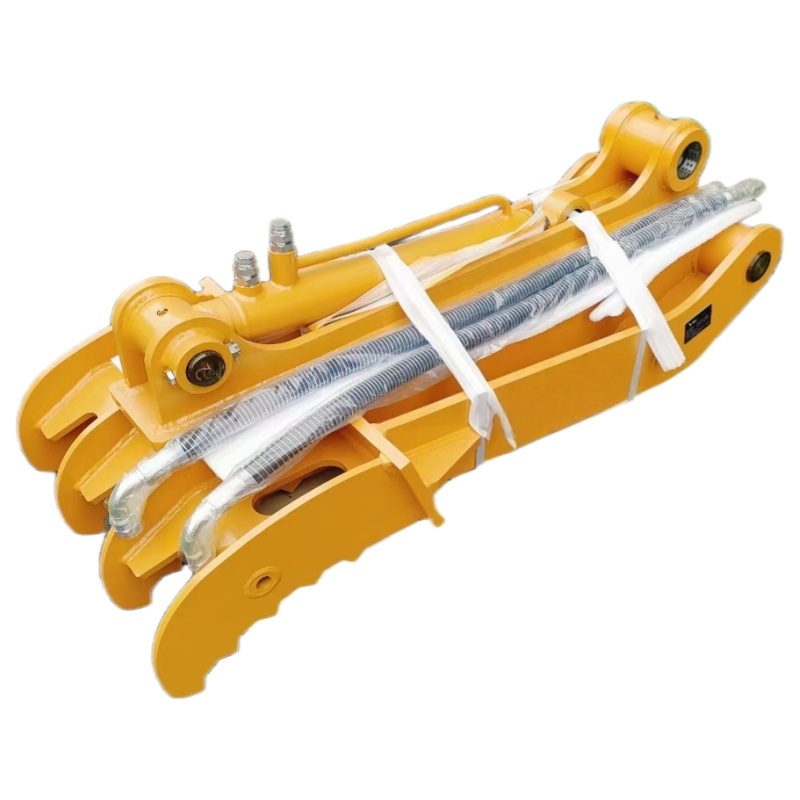

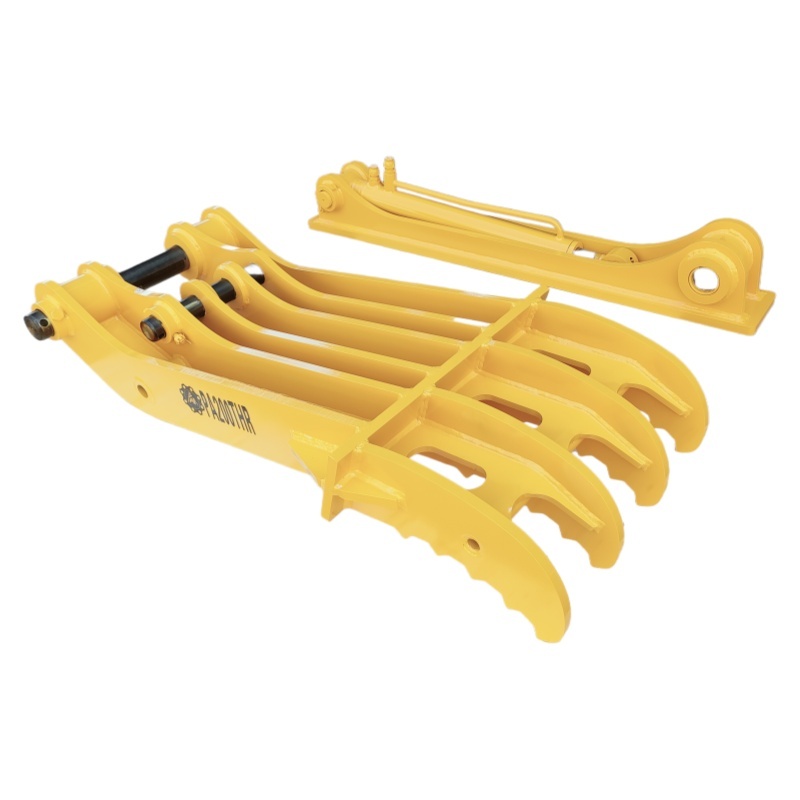

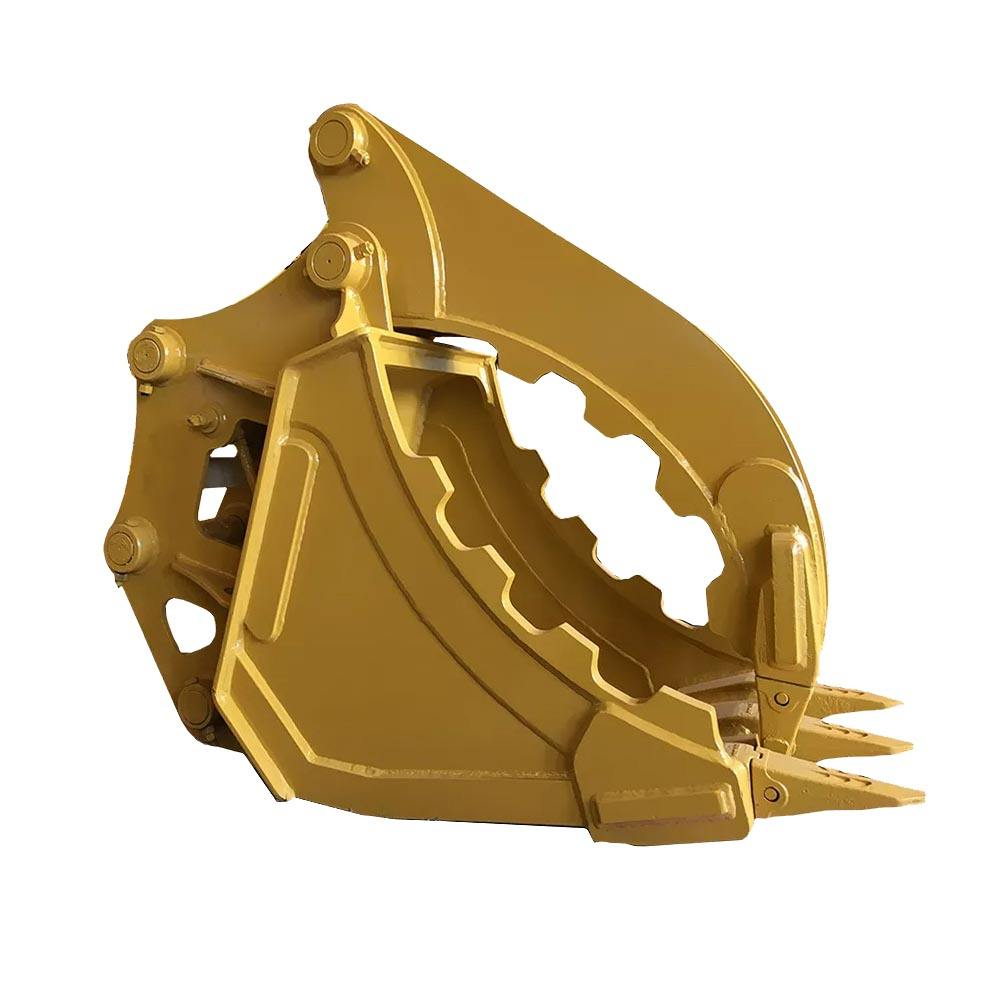

A clamp bucket is a type of excavator bucket that is specifically designed for heavy-duty excavation and rock handling tasks. It is commonly used in construction, mining, and quarrying operations where large rocks and debris need to be removed from the ground. Clamp buckets are typically made of high-strength steel and have a reinforced structure to withstand the high stress and impact of rock handling.The thumb fitted on the bucket grabs materials and prevent them from falling off. Optional mechanical thumb or hydraulic thumb that can be ordered separately and Utilizes GP bucket. Work sites where materials are prone to falling off; especially practical and secure for high lift-up loading.
| Type | Material | Bucket Capacity/m3 | Weight/KG | Width /mm | Suitable Excavator(ton) |
| PA2G2 | Q355B//NM400 | 0.05 | 160 | 400 | 3T~3.5T |
| PA4G2 | Q355B//NM400 | 0.12 | 310 | 476 | 5T |
| PA5G2 | Q355B//NM400 | 0.17 | 415 | 516 | 7T~7.5T |
| PA6G2 | Q355B//NM400 | 0.43 | 740 | 800 | 12T |
| PA8G2 | Q355B//NM400 | 0.74 | 1380 | 900 | 20T |
1）Reinforced Cutting Edge:
The cutting edge is reinforced for enhanced durability and improved penetration, making it well-suited for breaking and handling hard rock.
2）Optimized Bucket Shape:
The bucket's design is optimized to maximize material retention and facilitate efficient loading, ensuring effective rock handling with each scoop.
3）Wear-Resistant Design:
Incorporating wear-resistant components, the rock bucket minimizes wear and tear during continuous rock-handling operations, contributing to extended service life.
4）Quick Attachment and Operation:
Designed for quick and secure attachment to excavators, the rock bucket allows for efficient task-switching and streamlined workflow.
5）Compatibility with Excavator Models:
Engineered to be compatible with a range of excavator models, the rock bucket offers adaptability and ease of integration into existing equipment fleets.
6）Enhanced Tooth System:
Equipped with an enhanced tooth system, the bucket ensures effective penetration and breaking of rocks, optimizing overall rock-handling efficiency.
7. Are you a manufacturer?
* Yes,our factory was established in 2000 year in Yantai, Shandong. and we have ability to trading.
